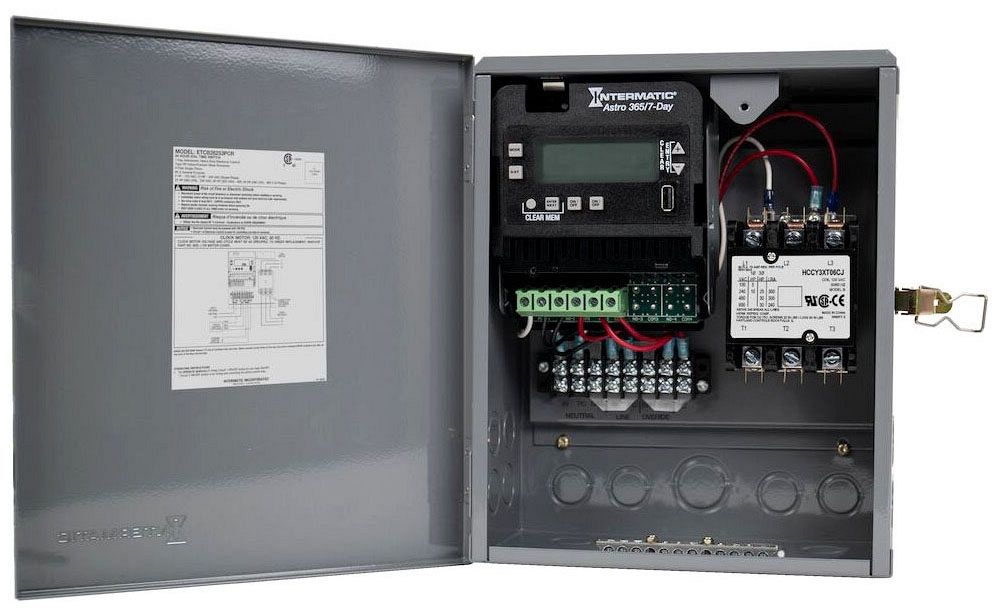

Name: Intermatic ETCB28253PCR Timers and Time Switches (Repackaged)
Brand: Intermatic
Price: 142.33 USD
Availability: InStock

SKU:

UPC: 7827515247

Weight: 12.60 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

TS PIK:128554783

Short Description:120 VAC 60 Hz, 60 A at 120 VAC Resistive, 30 HP, 96-Operation, Metal, Enclosure Mount, NEMA 3R, (3) SPST, 7-Day/365-Day, Electronic All-Purpose Contractor Box

Country of Origin:MEX

Power Rating:5 HP at 120 VAC/10 HP/25 HP at 240 VAC/30 HP at 480 VAC (Motor, NO)

Voltage Rating:120 VAC 60 Hertz

Maximum Number of Operations:96

Catalog:Intermatic_00628_28_CAT.pdf

Data Sheet:Intermatic_01583_1_2_DATA.pdf

Type:7-Day/365-Day

Installation/Operator:Intermatic_00503_INST.pdf

Switch Type:(3) SPST

Operating Temperature:-40 to 104 Deg F

Series:ET

Application:Indoor/Outdoor Lighting Control, Timing/Scheduling On/Off, Machinery and Pump Control

Approval:UL (Canada and US)

Reserve Power:Super Capacitor

Current Rating:60 A at 120 VAC (Resistive, NO), 360 A LRA at 240 VAC/300 A LRA at 480 VAC (Motor, NO)

Size:10 Inch Width x 4.75 Inch Depth x 11.75 Inch Height

Material:Metal

Enclosure:NEMA 3R
