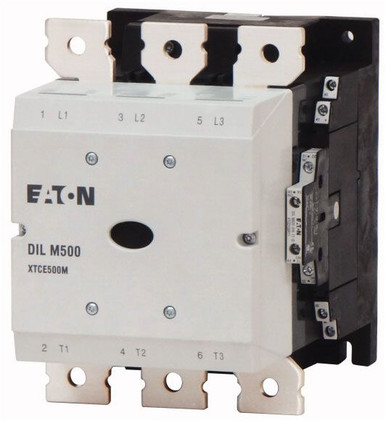

Name: Eaton XTCE500M22A IEC Contactor
Brand: Eaton
Price: 2902.7 USD
Availability: InStock

SKU:

UPC: 01508208213

Weight: 20.15 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

Approval:UL

Auxiliary Contact:2NO-2NC

Coil Voltage:110 to 250 VAC at 40 to 60 Hertz/110 to 250 VDC

Amps:500 A (AC-3)

Enclosure:IP00

Mounting:Panel/DIN Rail

Poles:3

Power/Voltage:150 HP at 200 Volt

Size:Frame 160 Millimeter

Type:Full Voltage

Short Description:500 HP 575 VAC 3-Phase, 110 to 250 VAC 40 to 60 Hz/110 to 350 VDC Coil, 500 A, 3-Pole, 2NO-2NC, IP00, 160 MM M-Frame, Screw Terminal, Full Voltage, Non-Reversing, IEC Contactor

Specification/Technical:Eaton_50760_1_2_SPEC.pdf

Data Sheet:Eaton_56242_1-13_DATA.pdf

Installation/Operator:Eaton_00657_INST.pdf

CAD Drawing:Eaton_57544_1_CAD.pdf

Catalog:Eaton_34561_V5T1_35-V5T1_65_V5T1_205-V5T1_243_CAT.pdf

CAD Drawings:Eaton_57544_1_CAD.pdf

Power Rating/Voltage:150 HP at 200 V, 200 HP at 230 V, 400 HP at 460 V, 500 HP at 575 V (3-Phase UL/CSA Rating), 155 kwatt at 220/230 V, 250 kwatt at 380/400 V, 300 kwatt at 415 V, 344 kwatt at 660/690 V, 132 kwatt at 1000 V (3-Phase 50/60 Hertz IEC Rating)

Number of Poles:3

Current Rating:500 A (AC-3), 800 A (AC-1)
