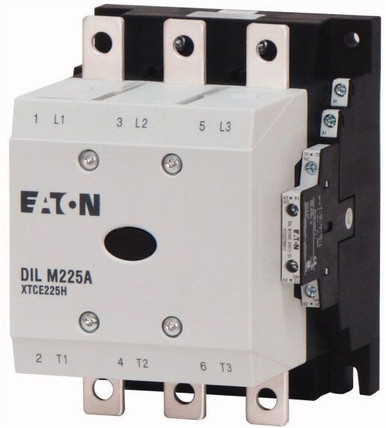

Name: Eaton XTCE225H22A IEC Contactor (Repackaged)
Brand: Eaton
Price: 752.58 USD
Availability: InStock

SKU:

UPC: 15081363241

Weight: 8.80 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

Approval:UL

Auxiliary Contact:2NO-2NC

Coil Voltage:100 to 120 VAC

Amps:250 A (UL)

Enclosure:IP00

Mounting:Panel/DIN Rail

Poles:3

Power/Voltage:60 HP at 200 Volt

Size:Frame 140 Millimeter

Type:Full Voltage

Short Description:200 HP 600 VAC 3-Phase, 100 to 120 VAC 50/60 Hz Coil, 225 A, 3-Pole, 2NO-2NC, IP00, 140 MM H-Frame, Screw Terminal, Full Voltage, Non-Reversing, IEC Contactor

Specification/Technical:Eaton_50740_1_2_SPEC.pdf

Data Sheet:Eaton_56221_1-12_DATA.pdf

Installation/Operator:Eaton_00656_INST.pdf

CAD Drawing:Eaton_57542_1_CAD.pdf

CAD Drawings:Eaton_57542_1_CAD.pdf

Number of Poles:3

Catalog:Eaton_34561_V5T1_35-V5T1_38_V5T1_42_V5T1_53_CAT.pdf

Power Rating/Voltage:60 HP at 200 V, 75 HP at 230 V, 150 HP at 460 V, 200 HP at 575 V (3-Phase UL/CSA Rating), 70 kwatt at 220/230 V, 110 kwatt at 380/400 V, 215 kwatt at 660/690 V, 108 kwatt at 1000 V (3-Phase 50/60 Hertz IEC Rating)

Current Rating:250 A (UL), 225 A (AC-3), 386 A (AC-1)
