SKU:

UPC: 78590188202

Weight: 0.00 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

Overloads:Melting Alloy

Series:8536

Type:Full Vage, Non-Reversing, Common Control Circuit

Size:NEMA 2

CAD Drawings:SchneiderElectric-SquareD_73309_1_CAD.pdf

Coil Voltage:220/240 VAC 50/60 Hertz

Construction Standard:NEMA

Prop 65 Warning:Yes

Power Rating/Voltage:10 HP at 200 VAC 50/60 Hertz, 15 HP at 230 VAC 50/60 Hertz, 25 HP at 460/575 VAC 50/60 Hertz, 600 VAC (Maximum)

Catalog:SchneiderElectric-SquareD_32357_16_2_16_28_16_31_CAT.pdf

Enclosure Type:Open

Current Rating:45 A (Rated), 5 kA (SCCR)

Phase:3

Installation/Operator:SchneiderElectric-SquareD_01081_INST.pdf

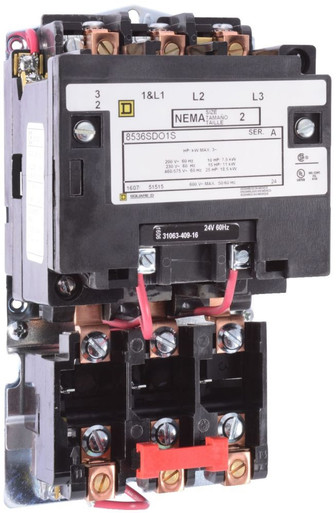

Short Description:25 HP at 460/575 VAC 50/60 Hz, 600 VAC, 220/240 VAC 50/60 Hz Coil, 45 A, 3-Phase, Melting Alloy, NEMA 2, Full Vage, Non-Reversing, Common Control Circuit, Magnetic Starter

Country of Origin:Mexico
