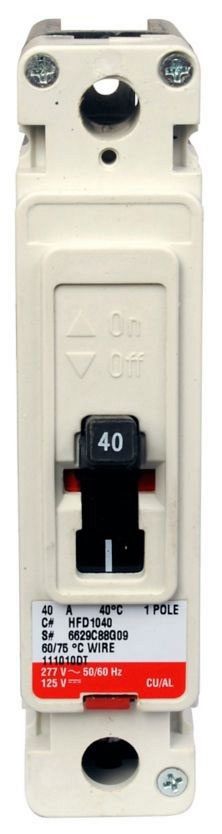

Name: Eaton HFD1040 Non-Interchangeable Trip Circuit Breaker
Brand: Eaton
Price: 279.54 USD
Availability: InStock

SKU:

UPC: 78667917530

Weight: 1.65 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

TS PIK:106999151

Short Description:277 VAC 50/60 Hz, 125 VDC, 40 A, 65 kA Interrupt, 1-Pole, FD Frame, Load Side Terminal, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker

Number of Poles:1

Current Rating:40 A

Maximum AC Voltage Rating:277 V

Data Sheet:EatonCorp_00484_1-12_DATA.pdf

Catalog:EatonCorp_00004_V4T2_259_V4T2_260_V4T2_278_V4T2_279_V4T2_286_V4T2_293_CAT.pdf

Maximum DC Voltage Rating:125 V

Voltage Rating:277 V AC 50/60 Hertz, 125 V DC

Type:Fixed Thermal Magnetic, Molded Case

Interrupting Rating:65 kA at 277 V AC, 10 kA at 125 V DC (UL), 65 kA at 220/240 V AC, 10 kA at 125 V DC (IEC)

Approval:UL 489, CSA C22.2

Installation/Operator:EatonCorp_00023_INST.pdf

Size:1.38 Inch Width x 3.88 Inch Depth x 6 Inch Height

Frame Type:FD

Terminal Type:Load
