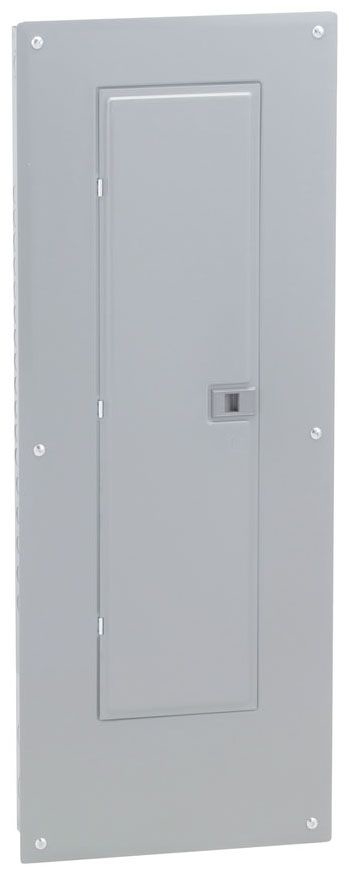

Name: Square D HOM4080M200PC Load Center
Brand: schneider
Price: 254.32 USD
Availability: InStock

SKU:

UPC: 78590197757

Weight: 38.30 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

TS PIK:125659457

Enclosure Size Designation:12

Maximum Number of Circuits:80

Catalog:SchneiderElectric_00257_1_23_1_26_CAT.pdf

Maximum Number of Spaces:40

Short Description:120/240 VAC, 200 A, 22 kA, 1-Phase, 3-Wire, 80-Circuit, 40-Space, NEMA 1, Indoor, Tin Plated Aluminum Bus, Convertible Main Breaker, Load Center with Combo Cover

Current Rating:200 A

Breaker Mounting:Plug-On

Voltage Rating:120/240 VAC

Circuit Configuration:1-Phase 3-Wire

Main Breaker Type:QOM2 Main Frame Size

Neutral Type:Plug-On

Cover Type:Flush/Surface

Data Sheet:SchneiderElectric_04368_1-4_DATA.pdf

Bus Material:Tin Plated Aluminum

Installation/Operator:SchneiderElectric-SquareD_00004_INST.pdf

Feed Location:Top/Bottom

Interrupting Rating:22 kA

Main Wire Size:4 AWG to 250 KCMIL (Copper/Aluminum)

Size:14.25 Inch W x 3.75 Inch D x 39.37 Inch H

Series:Homeline

Enclosure:NEMA 1

Approval:UL

Enclosure Type:NEMA 1, Indoor

Country of Origin:United States
