SKU:

UPC: 78590197732

Weight: 24.95 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

TS PIK:125659446

Current Rating:100 A

Circuit Configuration:1-Phase 3-Wire

Interrupting Rating:22 kA

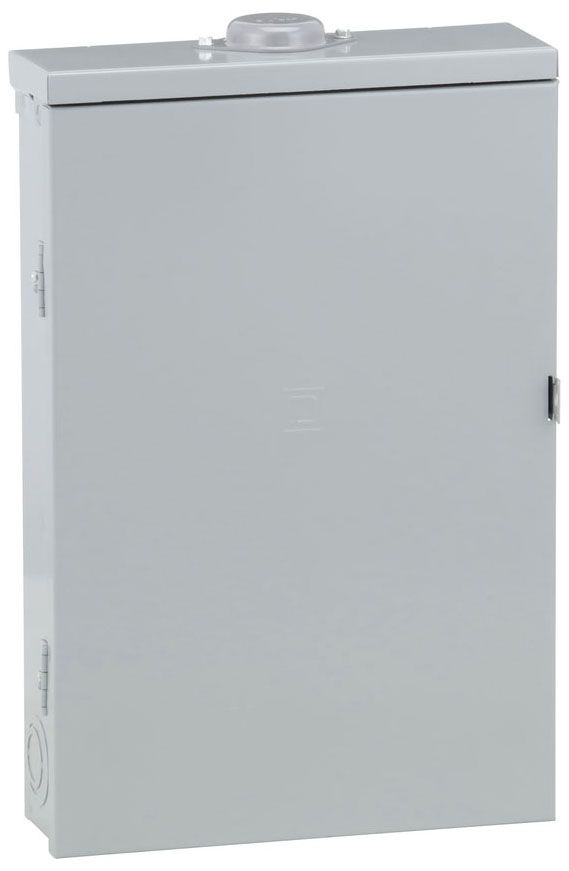

Short Description:120/240 VAC, 100 A, 22 kA, 1-Phase, 3-Wire, 40-Circuit, 20-Space, NEMA 3R Outdoor, Tin Plated Aluminum Bus, Convertible Main Breaker, Load Center

Voltage Rating:120/240 VAC

Data Sheet:SchneiderElectric-SquareD_13435_1_2_DATA.pdf

Catalog:SchneiderElectric_00257_1_25_CAT.pdf

Breaker Mounting:Plug-On

Size:14.76 Inch Width x 4.53 Inch Depth x 22.05 Inch Height

Installation/Operator:SchneiderElectric-SquareD_00004_INST.pdf

Enclosure Size Designation:7

Maximum Number of Circuits:40

Cover Type:Surface

Main Wire Size:6 to 2/0 AWG (Aluminum), 6 to 1 AWG (Copper)

Main Breaker Type:QOM1 Main Frame Size

Maximum Number of Spaces:20

Type:Convertible

Series:Homeline

Enclosure:NEMA 3R

Enclosure Type:NEMA 3R Outdoor

Approval:UL

Country of Origin:United States
