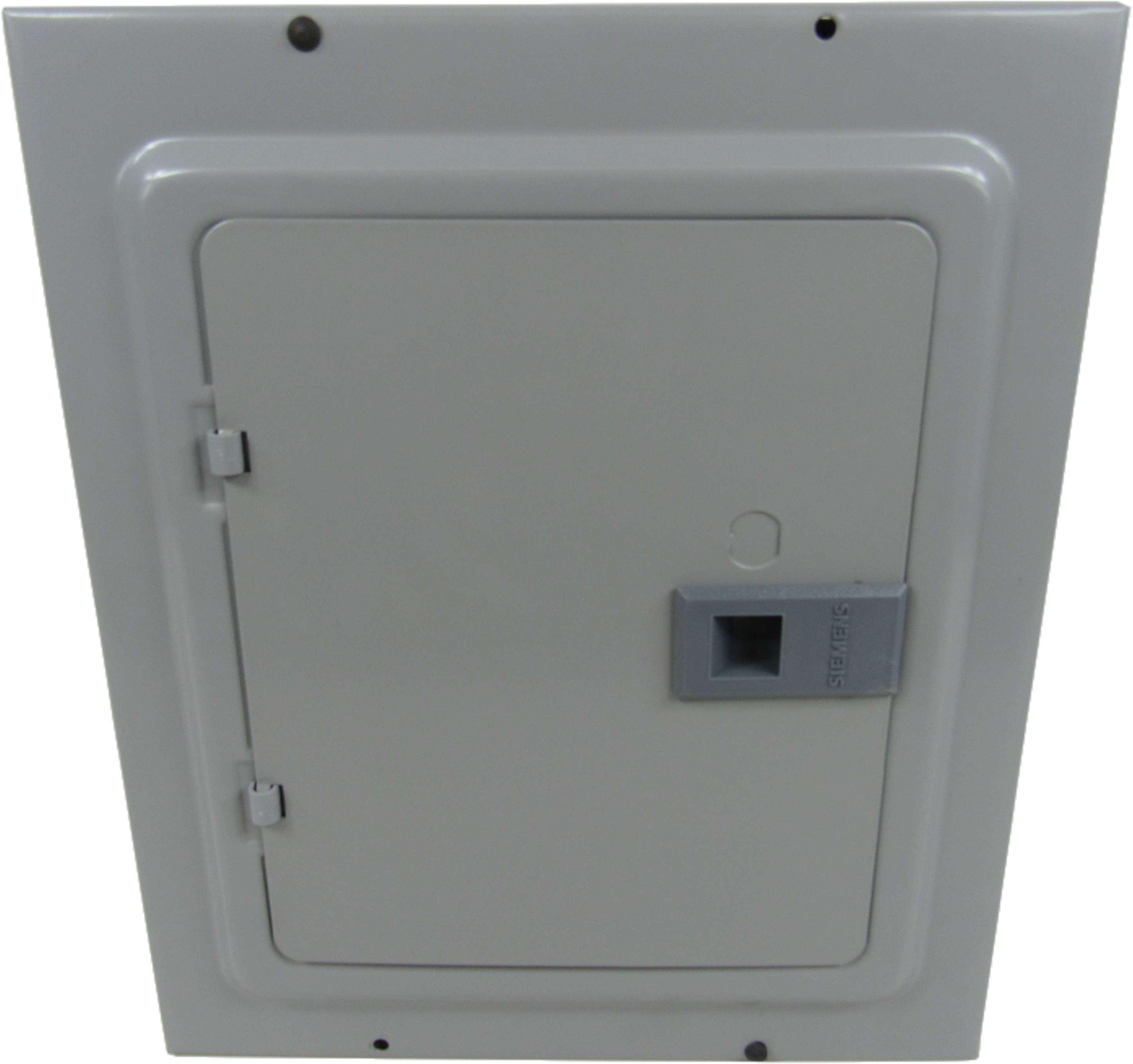

Name: Siemens E0816ML1125S Main Lug Load Center
Brand: Siemens
Price: 62.54 USD
Availability: InStock

SKU:

UPC: 78364320212

Weight: 12.30 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

Series:EQ

Type:Main Lug

Approval:UL

Volts:120/240 VAC

Amps:32 A

Interrupting Rating:100000 A

Enclosure:NEMA 1

Cover Type:Surface

Circuit Configuration:1-Phase 3-Wire

Bus Material:Aluminum

Maximum Number of Circuits:16

Enclosure Size Designation:1

Maximum Number of Spaces:(8) 1

Main Wire Size:#4 to 2/0 AWG (Copper/Aluminum)

Short Description:120/240 VAC, 125 A, 100 kA, 1-Phase, 3-Wire, 16-Circuit, 8-Space, Surface, Indoor, NEMA 1, Aluminum Bus

Catalog:SiemensAG_01809_2_15_CAT.pdf

Data Sheet:SiemensAG_05609_1_DATA.pdf

CAD Drawing:SiemensAG_07768_1_CAD.pdf

TS PIK:21367245

CAD Drawings:SiemensAG_07768_1_CAD.pdf

Current Rating:125 A

Voltage Rating:120/240 VAC

Country of Origin:Mexico

Enclosure Type:NEMA 1, Indoor
