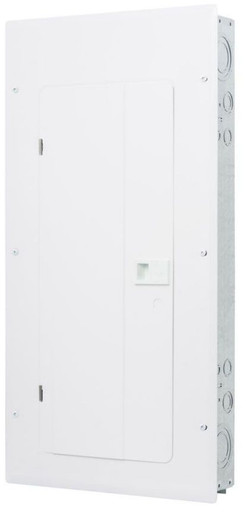

Name: Eaton BRP30L200GW Main Circuit Breaker Load Center
Brand: Eaton
Price: 194.51 USD
Availability: InStock

SKU:

UPC: 786689052904

Weight: 26.95 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

Type:Main Lug

Approval:UL 50/67

Size:14.3 Inch Width x 3.8 Inch Depth x 29.13 Inch Height

Amps:200 A

Interrupting Rating:10 kA

Enclosure:NEMA 1

Enclosure:Indoor

Cover Type:Flush/Surface

Neutral Type:Insulated/Bondable Split

Circuit Configuration:1-Phase 3-Wire

Bus Material:Tin Plated Aluminum

Maximum Number of Circuits:60

Enclosure Size Designation:X5

Maximum Number of Spaces:(30) 1-Pole 1

Feed Location:Top/Bottom

Main Wire Size:1 AWG to 300 KCMIL Copper/Aluminum

Main Breaker Type:CSR

Breaker Mounting:Plug-On

Catalog:Eaton_00071_V1T1_46-V1T1_78_CAT.pdf

Installation/Operator:Eaton_00231_INST.pdf

Current Rating:200 A

Voltage Rating:120/240 VAC

Enclosure Type:NEMA 1, Indoor

Short Description:120/240 VAC, 1-Phase, 200 A, 10 kA Interrupt, 60-Circuit, 30-Space, 24-Pole, 3-Wire, 1 AWG to 300 KCMIL Copper/Aluminum, Aluminum Bus, NEMA 1, Insulated/Bondable Spilt Neutral, Indoor, Plug-On, Main Circuit Breaker Load Center with Cover

TS PIK:127538855

Country of Origin:United States
