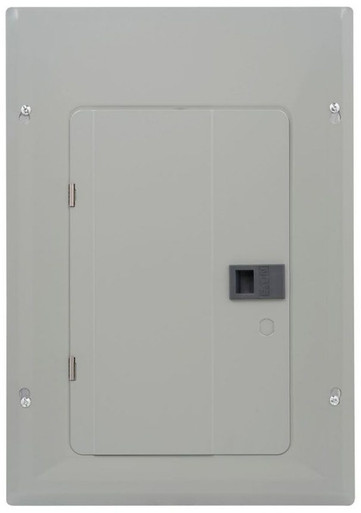

Name: Eaton BRP20L125G Load Center (Repackaged)
Brand: Eaton
Price: 65.46 USD
Availability: InStock

SKU:

UPC: 78668905323

Weight: 19.80 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

Type:Main Lug

Approval:UL 50/67

Size:14.3 Inch Width x 3.8 Inch Depth x 21 Inch Height

Amps:125 A

Interrupting Rating:10 kA

Enclosure:NEMA 1

Cover Type:Flush/Surface

Neutral Type:Insulated/Bondable Split

Circuit Configuration:1-Phase 3-Wire

Bus Material:Tin Plated Aluminum

Maximum Number of Circuits:40

Enclosure Size Designation:X2

Maximum Number of Spaces:(20) 1-Pole 1

Feed Location:Top/Bottom

Main Wire Size:6 to 2/0 AWG Copper/Aluminum

Main Breaker Type:BR

Breaker Mounting:Plug-On

Catalog:Eaton_00071_V1T1_46-V1T1_78_CAT.pdf

Installation/Operator:Eaton_00231_INST.pdf

Short Description:120/240 VAC, 1-Phase, 125 A, 10 kA Interrupt, 40-Circuit, 20-Space, 1-Pole, 3-Wire, 6 to 2/0 AWG Copper/Aluminum, Aluminum Bus, NEMA 1, Insulated/Bondable Spilt Neutral, Indoor, Main Lug, Load Center with Cover

Current Rating:125 A

Voltage Rating:120/240 VAC

TS PIK:127538907

Series:BR

Enclosure Type:NEMA 1, Indoor

Country of Origin:United States
