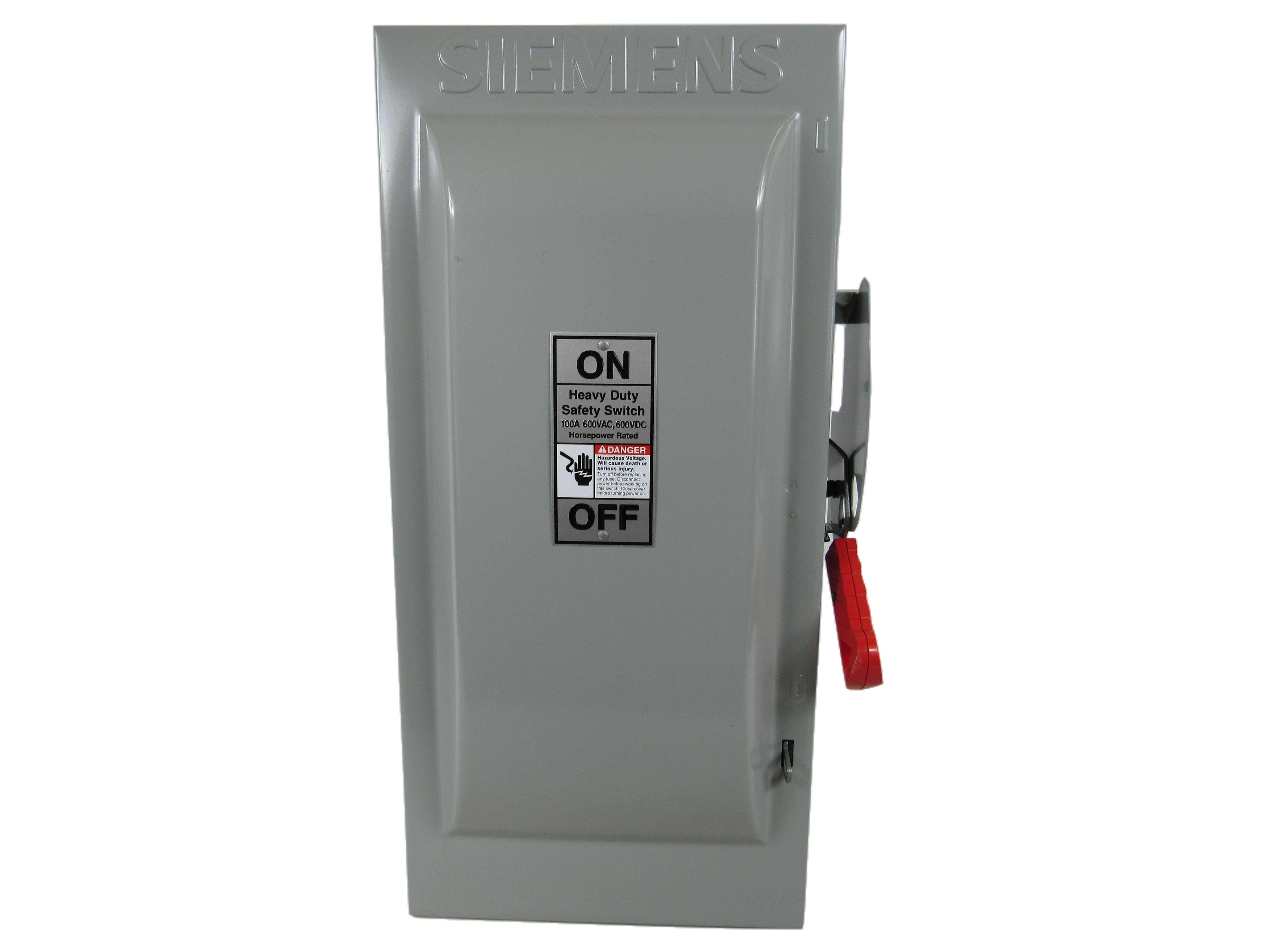

Name: Siemens HNF363 Single Throw Safety Switch
Brand: Siemens
Price: 284.99 USD
Availability: InStock

SKU:

UPC: 783643151185

Weight: 19.05 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

Short Description:240/480/600 VAC, 250/600 VDC, 100 A, 40 HP at 600 VAC 1-Phase, 100 HP at 600 VAC 3-Phase, 50 HP at 600 VDC, 3-Wire, 3-Pole, NEMA 1, Painted Steel, Non-Fusible, Heavy Duty

Type:Heavy Duty

AC Voltage Rating:600 V

Current Rating:100 A

Number of Poles:3

Catalog:SiemensAG_01698_18_6_18_10_18_13_18_26_CAT.pdf,SiemensAG_01698_18_6_18_10_18_13_18_26_CAT.pdf

Data Sheet:SiemensAG_06206_1_DATA.pdf

Technical Specifications:SiemensAG_01990_1_2_SPEC.pdf

Number of Wires:3

Series:HNF

Size:11.97 Inch Width x 10.17 Inch Depth x 23.46 Inch Height

Enclosure:NEMA 1

Power Rating:15 HP at 240 VAC 1 Phase, 40 HP at 240 VAC 3 Phase, 30 HP at 480 VAC 1 Phase, 75 HP at 480 VAC 3 Phase, 40 HP at 600 VAC 1 Phase, 100 HP at 600 VAC 3 Phase, 20 HP at 250 VDC

Neutral Type:None

Fuse Provision:Non-Fusible

Number of Phases:3

Country of Origin:Mexico

Approval:UL 98

TS PIK:115902617
