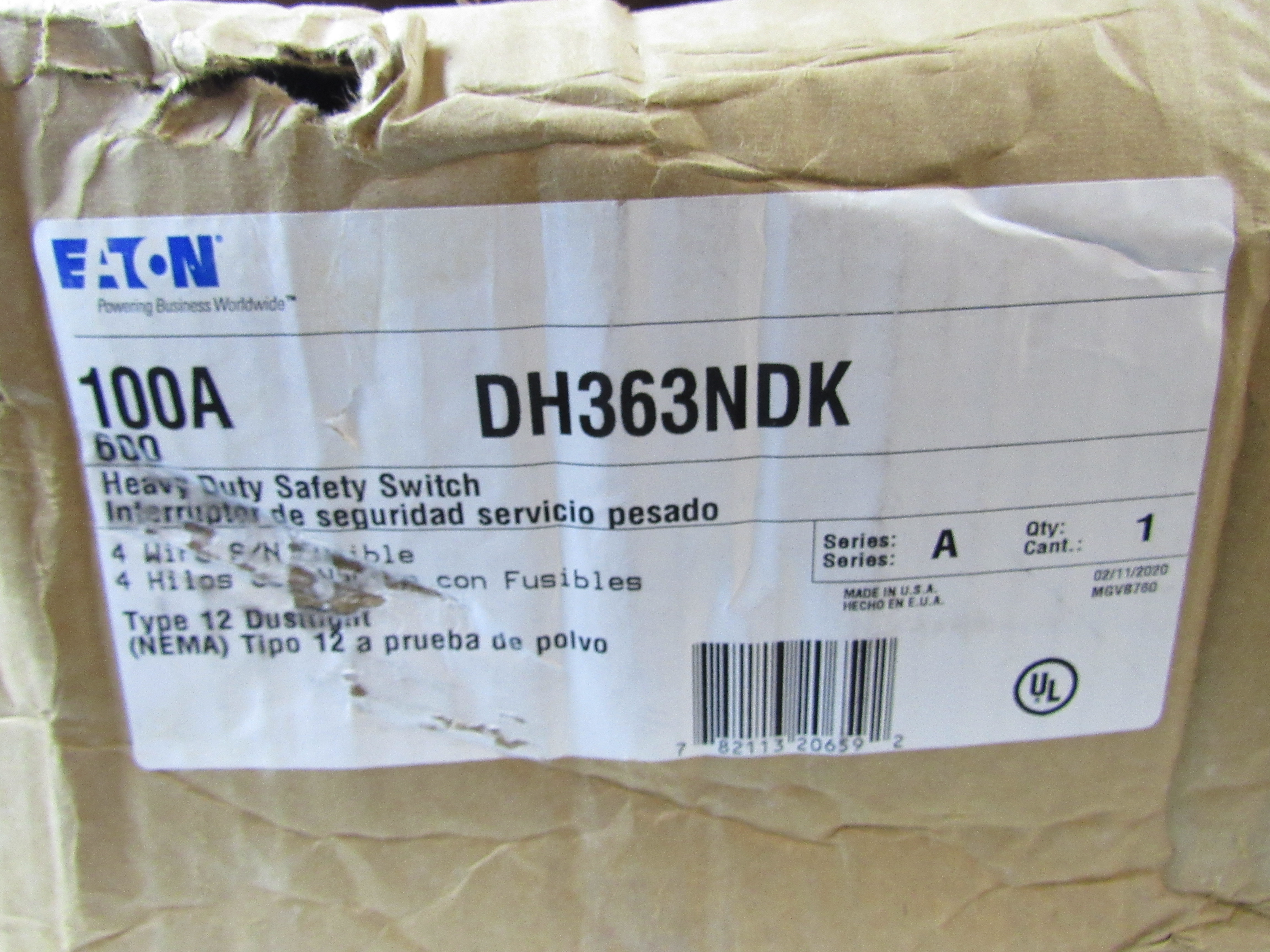

Name: Eaton DH363NDK Single Throw Safety Switch
Brand: Eaton
Price: 568.7 USD
Availability: InStock

SKU:

UPC: 78211320659

Weight: 26.00 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

Short Description:480 to 600 VAC, 250 VDC, 100 A, 75 HP, 3-Pole, 4-Wire, NEMA 12, Painted Galvanized Steel, Solid Neutral, Class H/Time Delay Fusible, Heavy Duty

Type:Heavy Duty

AC Voltage Rating:480 V

Current Rating:100 A

Number of Poles:3

Number of Wires:4

Fuse Provision:Fusible

Fuse Type:Class H

Enclosure:NEMA 3R/12

Catalog:Eaton_00003_V2T1_2_V2T1_7_V2T1_11_CAT.pdf,Eaton_00003_V2T1_2_V2T1_7_V2T1_11_CAT.pdf

Technical Specifications:Eaton_38555_1_2_SPEC.pdf

Power Rating:30 HP at 480 VAC 1-Phase, 40 HP at 600 VAC 1-Phase, 60 HP at 480 VAC 3-Phase, 75 HP at 600 VAC 3-Phase (Time Delay Fuse)

Series:DH

Size:10.76 Inch Width x 10.22 Inch Depth x 24.95 Inch Height

Neutral Type:Solid

Enclosure Material:Steel

Finish:Painted Galvanized

Approval:UL 98, NEMA KS-1

TS PIK:111011521
