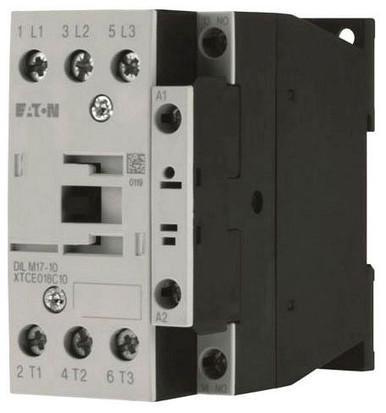

Name: Eaton XTCE018C10A Definite Purpose Contactors
Brand: Eaton
Price: 109.51 USD
Availability: InStock

SKU:

UPC: 01508276995

Weight: 1.00 LBS

Minimum Purchase: 1 unit

Shipping: Calculated at Checkout

TS PIK:124502914

Number of Poles:3

Series:XT

Coil Voltage:110 VAC at 50 Hertz, 120 VAC at 60 Hertz

Size:Frame 45 Millimeter

Type:Full Vage, Non-Reversing

Power Rating/Voltage:2 HP at 115 V, 2 HP at 200 V, 3 HP at 230 V (1-Phase), 5 HP at 200 V/230 V, 10 HP at 460 V, 15 HP at 575 V (3-Phase), 5 kwatt at 220/230 V, 7.5 kwatt at 380/400 V, 10 kwatt at 415 V, 11 kwatt at 660/690 V (3-Phase 50/60 Hertz IEC Rating)

Short Description:15 HP 575 VAC 3-Phase, 110 VAC 50 Hz/120 VAC 60 Hz Coil, 18 A, 3-Pole, 1NO, IP00, 45 MM C-Frame, Screw Terminal, Full Vage, Non-Reversing, IEC Contactor

Approval:UL, CSA C22.2, CE

Auxiliary Contact:1NO

Installation/Operator:Eaton_00653_INST.pdf

Catalog:Eaton_34561_V5T1_35-V5T1_65_V5T1_205-V5T1_243_CAT.pdf

Enclosure:IP00

CAD Drawings:Eaton_21606_1_CAD.pdf

Construction Standard:IEC

Data Sheet:Eaton_56032_1-14_DATA.pdf

Country of Origin:USA
