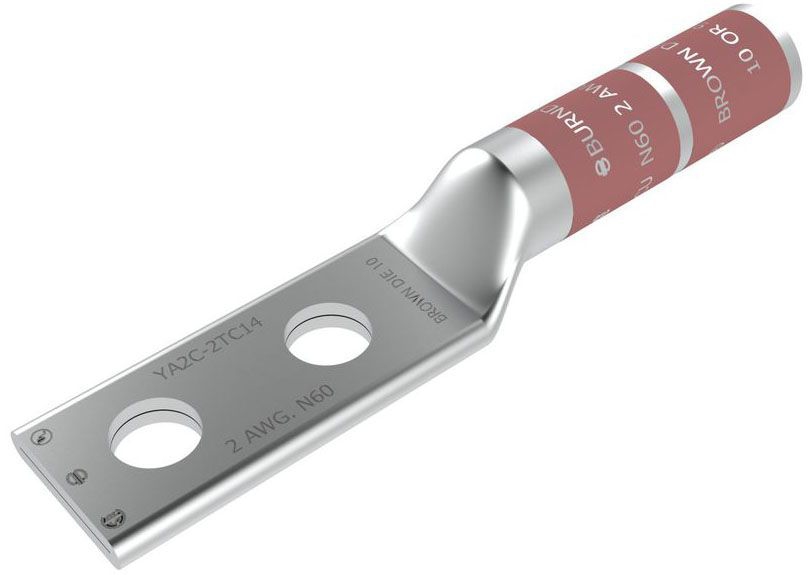

Short Description:2 AWG Solid/Stranded Copper Conductor, 600 V to 35 kV, 1/4" Stud, Brown, Electro Tin Plated Copper, 2-Hole, Long, Straight, Non-Insulated, Compression Cable Lug
Prop 65 Warning:Yes
Material:Electro-Tin Plated Copper
Stud Size:1/4
Overall Length:2.98
Die Index:10
Pad Size:0.6 W x 0.11 Thk
Approval:UL 468A/468B, CSA
CAD Drawings:Hubbell-Burndy_04229_1_6_CAD.pdf
Color:Brown
Barrel Type:Long, Standard, Straight
Catalog:Hubbell-Burndy_00572_C35_C36_CAT.pdf
Conductor Size:2 AWG Solid/Stranded (Code)
Barrel Length:1.25
Number of Pad Holes:2
Voltage Rating:600 V to 35 kV
Pad Hole Spacing:3/4
TS PIK:115911864
