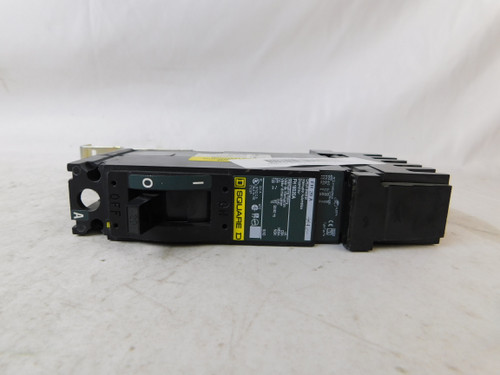

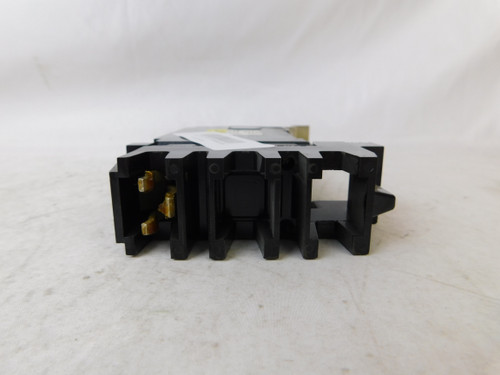

Square D FH16020A Miniature Circuit Breakers (MCBs)

Square D FH16020A Miniature Circuit Breakers (MCBs)

277 VAC, 125 VDC, 20 A, 65/10 kA, 1-Pole, F-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker

(No reviews) Write a Review

🚚 Free shipping on orders $50+.

MPN: FH16020A

SKU:

Weight: 2.47 LBS

Minimum Purchase: 1 unit

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Learn More About Product Conditions

Disclaimer: Critical Surplus is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed. All product names, trademarks, brands and logos are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All items sold by Critical Surplus are covered under Critical Surplus' warranty and not the manufacturer warranty.

Description

Square D FH16020A Miniature Circuit Breakers (MCBs)

Technical Specifications

Manufacturer	Square D FH16020A Miniature Circuit Breakers (MCBs)
Catalog Number	FH16020A
Application	Power Distribution
Approval	UL
Approval	CSA
Amps	20 A
Interrupting Rating	65 kA at 240 VAC or 480 VAC Star/277 VAC
Interrupting Rating	10 Kiloampere at 415 VAC (IEC)
Poles	1
Trip Setting	275 to 600 A
Type	Molded Case
Used On	Class 650/734/820 I-Line Panelboard/Switchboard
Volts	240 VAC at 50/60 Hz
Volts	480 VAC Star/277 VAC at 50/60 Hz (UL/CSA/NOM)
Volts	240/415 VAC at 50/60 Hz (IEC)
Volts	250 VDC
Series	FH
Installation/Operator	SchneiderElectric-SquareD_00076_INST.pdf
Number of Poles	1
Current Rating	20 A
Voltage Rating	240/480 VAC
Data Sheet	SchneiderElectric-SquareD_04524_1_2_DATA.pdf
Catalog	SchneiderElectric_00256_11_9_CAT.pdf
Country of Origin	United States
